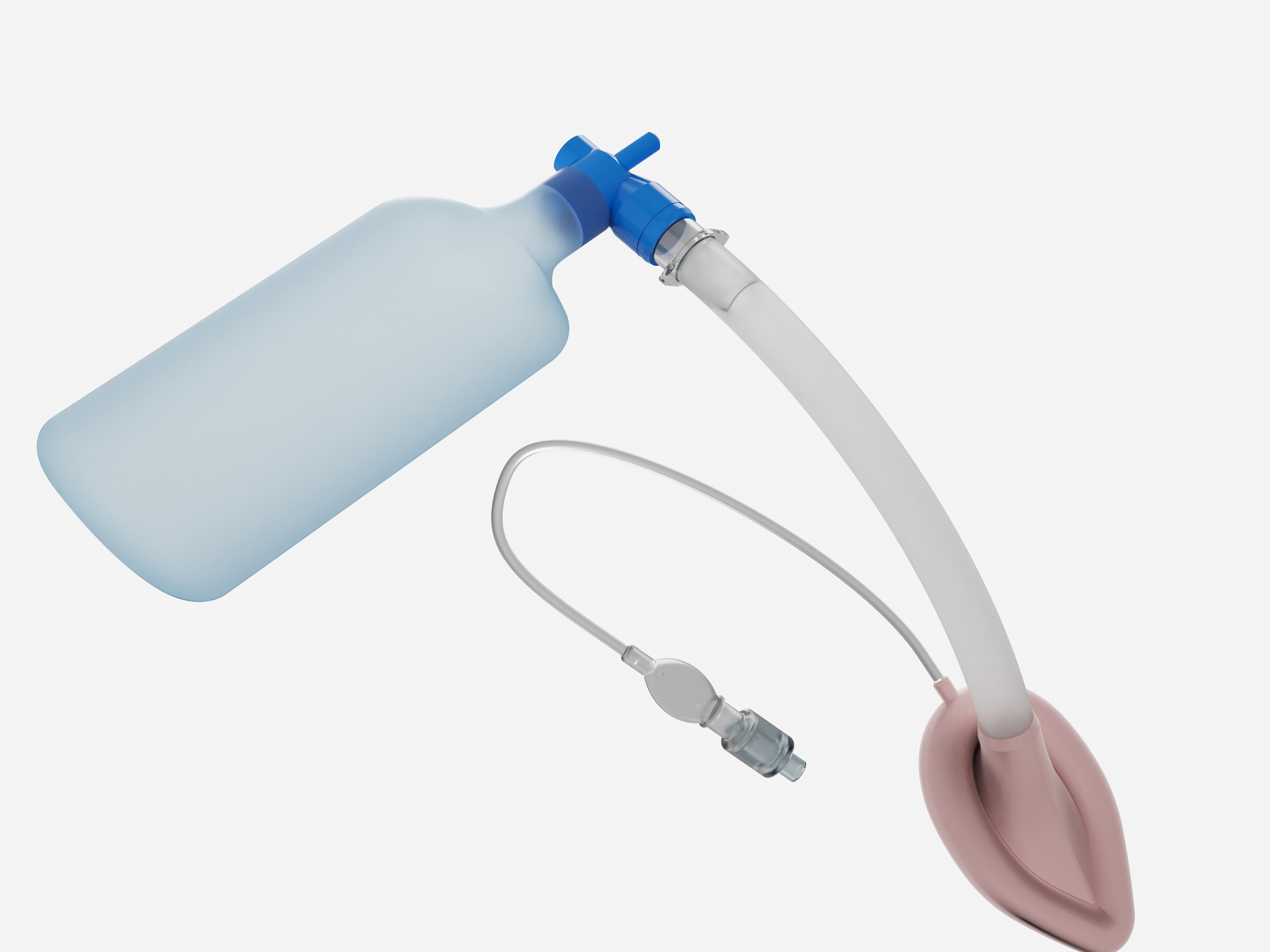

The Oxygen Reservoir Bag is intended as a post operative, recovery room, breathing attachment for use once a patient is disconnected from an anaesthetic circuit. The product consists of a reservoir bag and T-piece connector, a 15mm connector to Laryngeal Mask (LM) or Endotracheal Tube (ETT), a 6mm connector to oxygen tubing and a 10mm exhalation open port. As the patient breathes in, oxygen is both available from the oxygen supply and the reservoir bag. When exhalation, the expired gas is vented from the exhalation port and is flushed by the oxygen supply, any surplus oxygen then refills the reservoir bag.

Features and Benefits:

Medical grade material, DEHP FREE & LATEX FREE.

Bag inflation and deflation provides visual indication of respiration.

Reservoir bag fills with oxygen during expiration to increase oxygen concentration delivered.

Reliable FiO2 concentrations of 50% at 3L/min and 70% at 6L/min.

Light weight minimal pull on airway device.
